Insulated Garage Door With Ultra Grain Finish
Overview
Modern Steel Garage Doors
Modern Steel™
Overview
Modern Steel™ garage doors are available with a wide variety of options to suit your taste and your home’s appearance. Whether your home is mid-century modern, contemporary, or somewhere in between, these beautiful and durable steel-panel garage doors will add curb appeal to your home’s exterior.
Construction Overview
- Available in 3, 2 or 1-layer steel and insulation construction options.
- Garage door insulation options include 2″ or 1-3/8″ Intellicore® polyurethane, 2″, 1-3/8″, 1-5/16″ polystyrene.
- Insulated door R-values range from 4.4 to 18.4.
- The steel skins are protected by the use of a tough, layered coating system, which includes a hot-dipped galvanized layer and baked-on primer and top coat.
- WINDCODE® door reinforcement product available for high wind load applications. (Click for details)
Design Overview
- Available as either a flush or grooved steel panel design.
- Steel surface textures vary by model and paint surface. See chart here for more details
- 15 factory finish options available, Ultra-Grain®, Lustra™ and Ultra-Grain Plank wood-look finishes.
- Many glass and window size options available including insulated, frosted, slim, and long and short designs.
- Optional window grilles can be removed for easy cleaning.
Environmental Assurance
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.
Construction
Modern Steel™
- Available in 3-layer, 2-layer or 1-layer construction
- Insulation options include (R-values from 4.4 to 18.4):
- 2″ or 1-3/8″ Intellicore® polyurethane
- 2″ or 1-3/8″ polystyrene
- 1-5/16″ vinyl backed polystyrene
- Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
- Window grilles are removable for easy cleaning.
- Safe T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
- Rust-Prevention System – Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pre-treatment and a baked on primer and top coat.
Safe T-Bracket®
Rust-Prevention System
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability. (Click for details)
Design Options
DOOR DESIGNS
FLUSH PANEL
GROOVED PANEL*
FLUSH WITH LONG WINDOWS*
GROOVED WITH SHORT WINDOWS*
Flush with full view short panel windows*
Flush panel with short windows*
GROOVED WITH LONG PANEL WINDOWS*
Grooved full view with short panel windows*
Flush with Contemporary Slim Windows
Colors
STANDARD WHITE
ALMOND
DESERT TAN
SANDTONE
BRONZE
CHOCOLATE
MOCHA BROWN*
HUNTER GREEN*
GRAY*
CHARCOAL*
BLACK*
ULTRA-GRAIN CYPRESS MEDIUM FINISH*
ULTRA-GRAIN CYPRESS CHERRY FINISH*
ULTRA-GRAIN CYPRESS WALNUT FINISH*
ULTRA-GRAIN CYPRESS SLATE FINISH*
LUSTRA BLACK*±
LUSTRA CHARCOAL*±
LUSTRA SILVER*±
ULTRA-GRAIN PLANK KONA*
ULTRA-GRAIN PLANK COASTAL GRAY*
Media
Product Brochures
Modern Steel Brochure
Ultra-Grain Paint Option Brochure
Products available through Independent Dealers
Installation & Care
Insulated Steel Installation Instructions and Maintenance
1and 2 Layer Installation and Maintenance Instructions

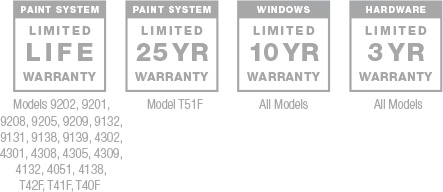

1 Year Installation Warranty
