Commercial Aluminum and Glass Overhead Doors

ARCHITECTURAL SERIES-ALUMINUM

Aluminum Full-View Doors

Clopay’s aluminum full-view doors are ideal for commercial buildings requiring visibility, access to natural lighting and a modern look. They’re a great choice for applications ranging from restaurants and fire stations to car dealerships.

These overhead doors come with an aluminum frame construction and also come in solid aluminum if privacy is preferred. You can also customize your door with a wide variety of window, color, design and performance options.

ALUMINUM FULL-VIEW DOORS

GLASS/PANEL OPTIONS:

FULL-VIEW (904)

SOLID ALUMINUM (904)

FULL-VIEW (905/906)

SOLID ALUMINUM (905/906)

GLAZING MATERIAL OPTIONS (904/904U):

CLEAR GLASS

5/16″ CLEAR LAMINATED IMPACT-RATED GLASS**

GRAY TINTED GLASS

BRONZE TINTED GLASS

MIRRORED GLASS*

OBSCURE GLASS

WHITE LAMINATE GLASS*

BLACK LAMINATE GLASS*

FROSTED GLASS OR ACRYLIC

CLEAR ACRYLIC

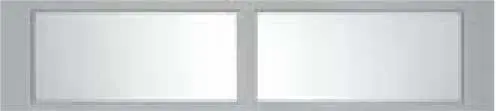

GRAY ACRYLIC

WHITE ACRYLIC

CLEAR POLYCARBONATE

BRONZE POLYCARBONATE

ALUMINUM PANEL (COLOR-MATCHED)

*Mirrored and laminate not available in 1/2″

Glass options above only available on full-view sections. Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 5/8″. Low-E available on insulated glass.

**Available in 904W8/904UW8 only

GLAZING MATERIAL OPTIONS (905/905U):

FROSTED ACRYLIC

CLEAR ACRYLIC

GRAY ACRYLIC

WHITE ACRYLIC

BLACK ACRYLIC

ALUMINUM PANEL (COLOR-MATCHED)

Hardcoated Acrylic options available.

Thickness is 1/8″.

GLAZING MATERIAL OPTIONS (906/906U):

CLEAR TEMPERED GLASS

GRAY TINTED TEMPERED GLASS

BRONZE TINTED TEMPERED GLASS

TEMPERED MIRRORED GLASS

TEMPERED OBSCURE GLASS

ALUMINUM PANEL (COLOR-MATCHED)

Low E glass available.

Glass thickness available in 1/8″, 1/4″ and 1/2″.

COLOR OPTIONS:

CLEAR ALUMINUM (ANODIZED)

STANDARD WHITE

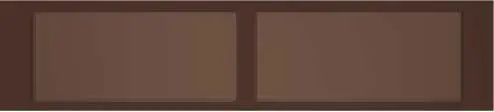

BRONZE (PAINTED)

CHOCOLATE (PAINTED)

BRONZE ANODIZED*

BLACK (ANODIZED)*

DARK BRONZE ANODIZED*

Request Color Samples

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.

Premium finishing options include:

RAL color powder coat
187 different powder coat offerings
Custom Colors with Color Blast ® Garage Door Paint System
Bronze, dark bronze, black or custom color anodized finishing

*Models 904U, 905U and 906U are not available with powder coat finish.

Performance Options Available:

Double-end hinge

3” Track

High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3″ sealed roller with 5/8″ stem.

25,000, 50,000 or 100,000 cycle springs available.

Exhaust port can be cut into any type of solid sectional door. Available in select sizes.

WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.

Construction

ARCHITECTURAL SERIES-ALUMINUM

Aluminum Full-View Doors

Model	Thickness	Spacing	R-Value	Max Width✭	Max Height✭
904	2-1/8″	Equal width & spacing	–	24’2″	20’0″
904U	2-1/8″	Equal width & spacing	3.8*	20’2″	20’0″
905/906	2-1/8″	Minimal stiles	–	22’2″	16’0″
905U/906U	2-1/8″	Minimal stiles	–	20’2″	16’0″

✭Maximum Width and Height values listed are Standard sizing.
*With clear insulated glass

*** Clopay’s proprietary polyurethane Intellicore insulation
